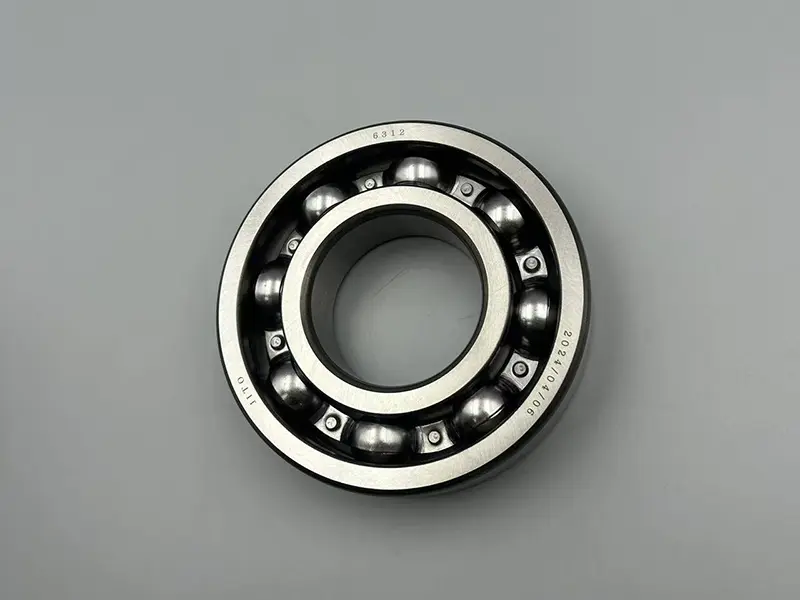

| Item No. | 6312 Deep Groove Ball Bearing |
| Bearing Type | Deep groove ball bearing |
| Seals Type | Open, ZZ, 2RS |
| Material | Chrome steel GCr15 |
| Precision | P0, P2, P5, P6, P4 |
| Clearance | C0, C2, C3, C4, C5 |
| Cage type | Brass, steel, nylon (customizable) |
| Vibration | Z1V1, Z2V2, Z3V3, Z4V4 |
| Hardness | HRC58 - 64 |
| Specification | 60*130*31 mm |
| Weight | 1.72 Kg |
Simple and Versatile: The basic structure consists of an inner ring, an outer ring, a set of steel balls, and a cage. It is the most commonly used type of rolling bearing, suitable for a variety of mechanical applications.
High-Speed Performance: Features a small friction coefficient and a high-speed limit, making it ideal for high-speed or extremely high-speed operations.
Low Maintenance: Bearings equipped with dust caps or seals on both sides are maintenance-free and lubricated for life.
Sealed Bearings: Require no additional lubrication during use. Operating temperature should be maintained between -30°C and +120°C.
Open-Type Bearings: Regular inspection and lubrication are required. Ensure the environment is clean to prevent dust and impurities from affecting performance.
Selection Advice: When choosing your bearing, consider load capacity, speed requirements, installation space, and precision requirements. Always verify that the equipment fits the 60mm x 130mm x 31mm dimension profile.
| Bearing No. | d (mm) | D (mm) | B (mm) | Dynamic (kN) | Static (kN) | Weight (kg) |
|---|---|---|---|---|---|---|
| 6003 | 17 | 35 | 10 | 6 | 3.25 | 0.04 |
| 6004 | 20 | 42 | 12 | 9.38 | 5.03 | 0.068 |
| 6005 | 25 | 47 | 12 | 10.1 | 5.83 | 0.079 |
| 6006 | 30 | 55 | 13 | 13.2 | 8.3 | 0.113 |
| 6007 | 35 | 62 | 14 | 16.2 | 10.4 | 0.149 |
