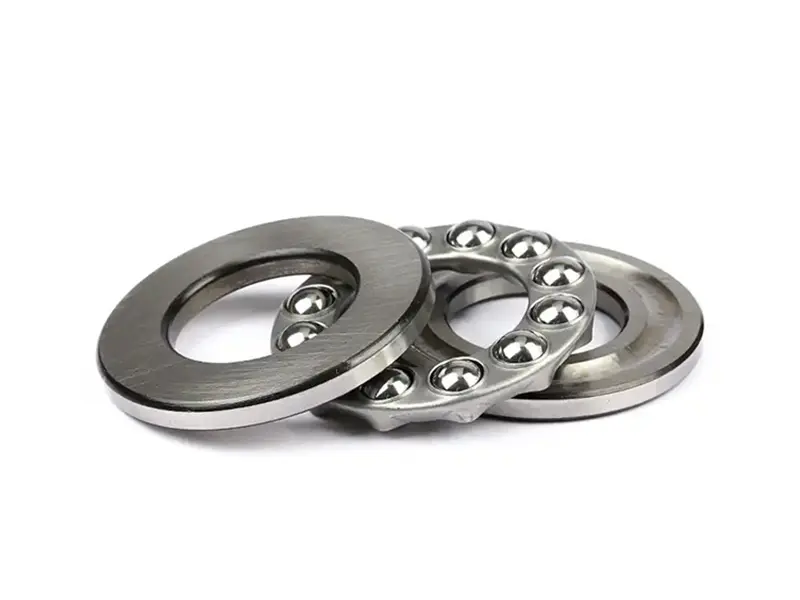

CE Certification 51100 Thrust ball bearing Thrust Load 10249 One-way Design Separable Road Machinery/Chemical Equipment Factories, Products

Thrust ball bearings are designed to withstand thrust loads at high speeds and are composed of gasket rings with ball rolling raceway grooves. Because the ring is the seat pad shape, the thrust ball bearing is divided into two types: flat base pad type and aligning spherical seat type. In addition, this bearing can withstand axial loads, but not radial loads.

Send Inquiry

Product Description

Bearing Detail

Item No.	51200
Bearing Type	Thrust ball bearing
Material	Chrome steel GCr15
Precision	P0, P2, P5, P6, P4
Clearance	C0, C2, C3, C4, C5
Inner diameter	10 mm
Outer diameter	26 mm
Width	11 mm
Weight	0.03kg
Dynamic load rating	12.7 kN
Static load rating	17.1 kN
Application	Automotive industry, Agricultural machinery, Industrial machinery

Bearing Composition & Features

Thrust ball bearing is composed of a seat ring, shaft ring, and steel ball cage assembly. The shaft ring is matched with the shaft, while the seat ring is matched with the shell.

Structural Features: One-way thrust ball bearings consist of a shaft ring, a bearing race, and a ball and cage thrust assembly. The structure is separable, making installation simple as the washer and the ball cage assembly can be installed separately.
Axial Load: Designed to withstand axial loads in one direction and fix the machine shaft. Note: Must not be subjected to radial loads.
Material Quality: Made of high-quality GCr15 bearing steel, offering high and uniform hardness after heat treatment, excellent wear resistance, and high contact fatigue strength.

Standard Size Reference

Type	d (mm)	D (mm)	T (mm)
51100	10	24	9
51101	12	26	9
51102	15	28	9
51103	17	30	9
51104	20	35	10
51200	10	26	11
51201	12	28	11
51202	15	32	12

Why Choose Us

Professional Solutions

Our engineers provide optimum solutions tailored to specific customer demands and operating conditions.

Strict Quality Control

We implement strict quality control from raw material inspection to final packaging according to ISO standards.

Customized Packaging

We offer standardized export packing, including custom boxes, labels, and barcodes based on requirements.

Reliable Logistics

Efficient shipping methods including ocean freight, airfreight, and express options to ensure timely delivery.

Warranty Service

We provide a 12-month warranty against defects in material and workmanship from the shipping date.

Frequently Asked Questions

Q: Can thrust ball bearings withstand radial loads?

No, thrust ball bearings are specifically designed for axial loads only and should not be subjected to radial loads.

Q: What material is used for these bearings?

They are typically manufactured using high-quality GCr15 bearing steel, which offers excellent hardness and wear resistance.

Q: How should I install these bearings?

During installation, ensure that the shaft ring and seat ring are kept parallel to avoid eccentric loading, which can damage the bearing.

Q: What maintenance is required?

Regular checks on lubrication are essential to ensure the bearing operates normally and to extend its service life.

Q: Can you provide custom sizes?

Yes, we offer OEM services and can meet specific customer requirements for bearing dimensions and specifications.

Q: What is the warranty period?

We provide a 12-month warranty from the date of shipment, covering defects in materials and workmanship.
