Jito Bearing
1 / 4

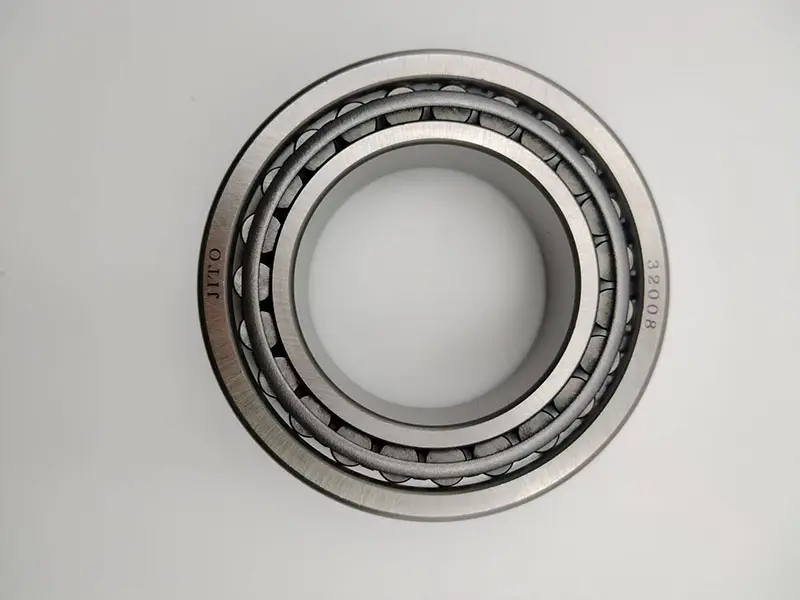

| Item No. | 32008 (Metric) |
| Bearing Type | Taper roller bearing (Metric) |
| Material | Chrome steel GCr15 |
| Specification | 40*68*19 |
| Precision | P0,P2,P5,P6,P4 |
| Inner Ring Width | 19 mm |
| Outer Ring width | 14.5 mm |
| Contact angle | 14.167° |
| Basic rated dynamic load | 49.5kN |
| Basic rated static load | 67kN |
| Reference speed | 7000r/min |
| Limiting speed | 9500r/min |
| Brand | Premium Quality or OEM |
| Separable | Yes |
| Application | Automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries |
Strong bearing capacity: Mainly bears radial and axial combined loads dominated by radial loads, and generally does not bear axial loads alone.

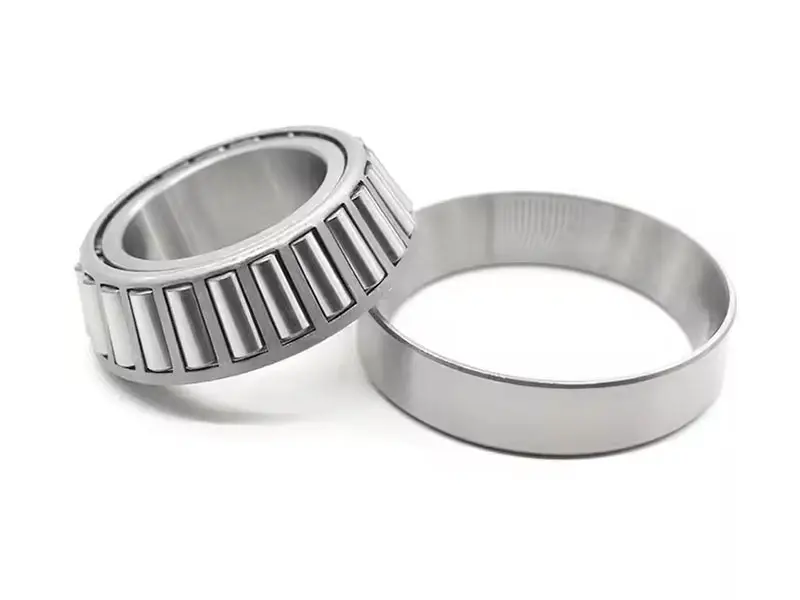

Separable installation: The inner and outer rings can be installed separately, and the axial clearance and radial clearance can be adjusted during the installation process, or pre-interference installation can be performed.
Axial displacement limit: It can limit the axial displacement of the shaft or the housing, and does not allow the shaft to be tilted relative to the housing or the hole.
Clearance affects life: The size of the axial clearance of the tapered roller bearing directly affects the service life of the bearing.
We communicate with customers on their demands and provide optimum engineering solutions based on specific conditions.
In accordance with ISO standards, our professional staff and precision testing instruments ensure quality in every process.
Standardized export packing is provided. Shipping via ocean, air, or express is available based on customer requirements.
