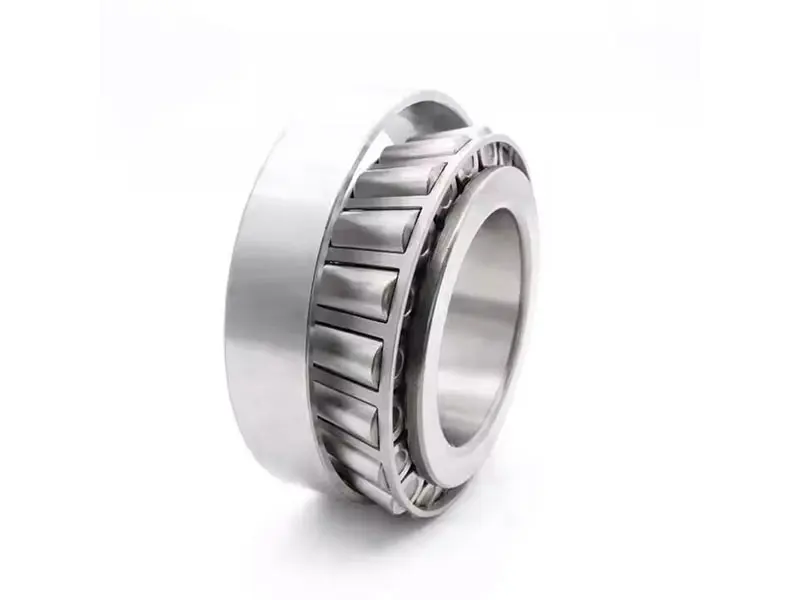

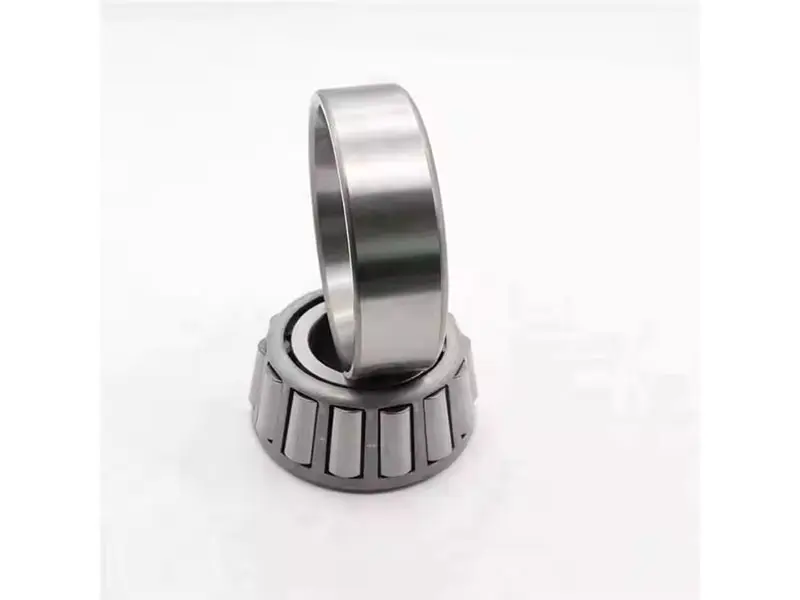

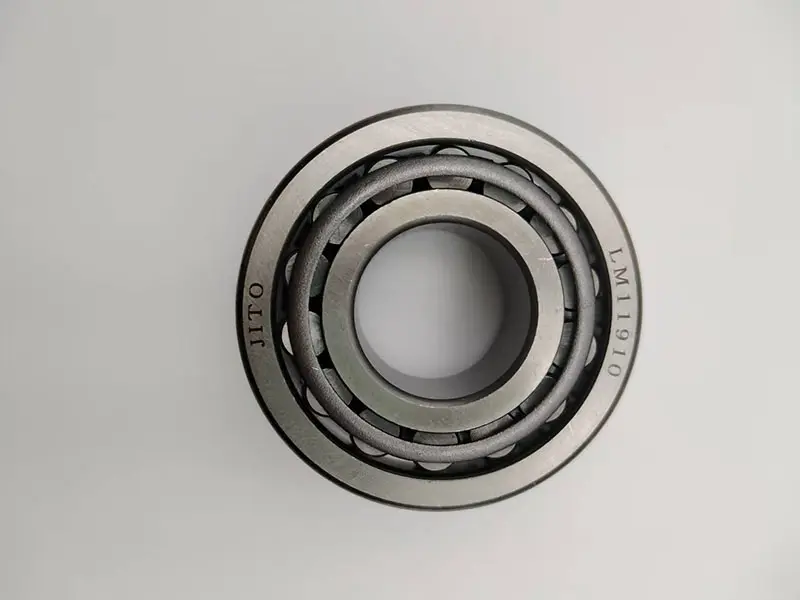

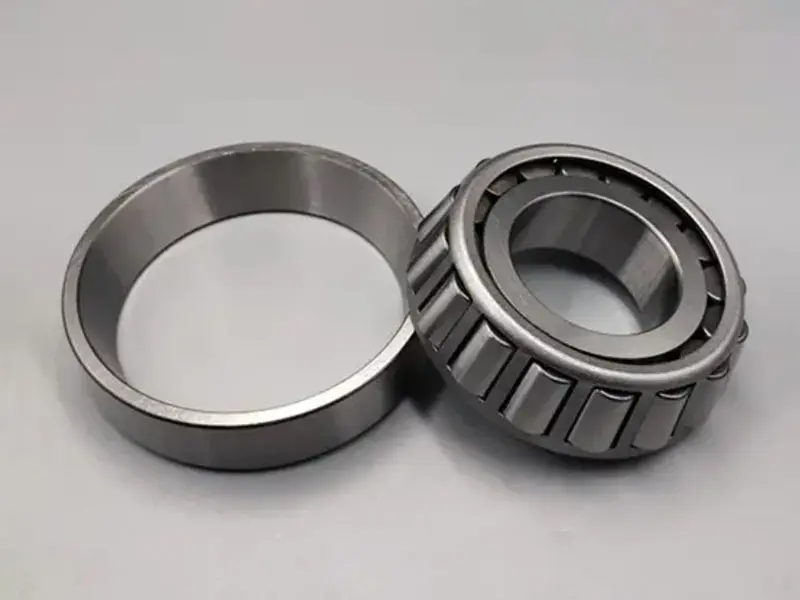

| Item No. | LM11910 (Inch) |
| Bearing Type | Taper roller bearing (Inch) |
| Material | Chrome steel GCr15 |
| Precision | P0,P2,P5,P6,P4 |
| Clearance | C0,C2,C3,C4,C5 |
| Outer diameter | 45.237mm |
| Thickness | 12.065mm |
| Inner diameter | 19.05mm |
| Width | 15.494mm |
| Row number | Single |
| Basic rated dynamic load | 10100N |
| Basic rated static load | 32000N |
| Dynamic thrust load rating | 5220N |
| Brand | Premium or OEM |
| Vibration | ZV1, ZV2, ZV3, or as requested |
| Application | Automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries |
| Bearing Package | Pallet, wooden case, commercial packaging or as customers' requirement |
Strong load-bearing capacity: It can withstand large radial loads and unidirectional axial loads, and is suitable for working conditions with combined loads.
High rigidity: It can maintain high rotation accuracy, make the equipment run more smoothly, and can effectively reduce vibration and noise.
High speed: After optimized design, it can adapt to higher speed requirements under certain conditions.
Automotive industry: Commonly used in vehicle front wheels, differential and pinion structures, and trailer wheels, such as automobile wheel hub bearings, which can ensure the stable rotation of wheels and carry the weight of vehicles.
Industrial machinery: It is used in equipment such as conveyor belt rollers and machine tool spindles, and can withstand loads such as conveyor belt tension and cutting force of machine tools.
1. Taper Roller Bearing Introduction:

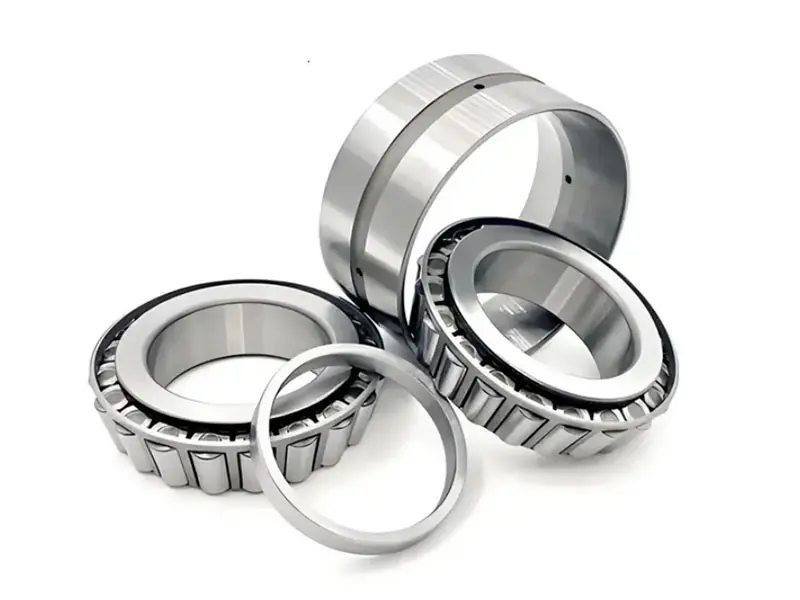

Tapered roller bearings are separate bearings, and the inner and outer rings of the bearing have tapered raceways. This type of bearing is divided into different structural types such as single row, double row and four row tapered roller bearings according to the number of rows of rollers installed.
2. Taper Roller Bearing Application:
Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.
3. Tapered Roller Bearing Suffix definition:
A: Internal structure change; B: increased contact angle; X: The external dimensions are in accordance with international standards; CD: Double outer ring with oil hole or oil groove; TD: Double inner ring with tapered bore.
We work closely with customers to understand requirements and provide optimal bearing solutions tailored to specific operating conditions.
Adhering to ISO standards, our professional team uses precision instruments to inspect every process, from raw materials to final packaging.
We use standardized export packing and protective materials. Custom boxes, labels, and barcodes are available upon request.
We provide flexible shipping options including ocean, air, and express transport to ensure timely delivery for all order sizes.
We provide a 12-month warranty from the date of shipment against defects in material and workmanship.
