| Item No. | UCP 206 |
| Bearing Type | Pillow block bearing |
| Material | Chrome steel GCr15 |
| Precision | P0,P2,P5,P6,P4 |
| Clearance | C0,C2,C3,C4,C5 |
| Brand | JITO or OEM |
| Inner diameter | 30 mm |
| Outer diameter | 159mm |
| Width | 38.1 mm |
| Weight | 0.61kg / 1.34kg |
| Sealing type | Contact seal and flinger on both sides |
| Housing material | Cast iron |
| Basic dynamic load | 19.47kN |
| Basic Static load | 11.43kN |
| Limit speed | 5000 r/min |
| Application | Automotive industry, Agricultural machinery, Industrial machinery |

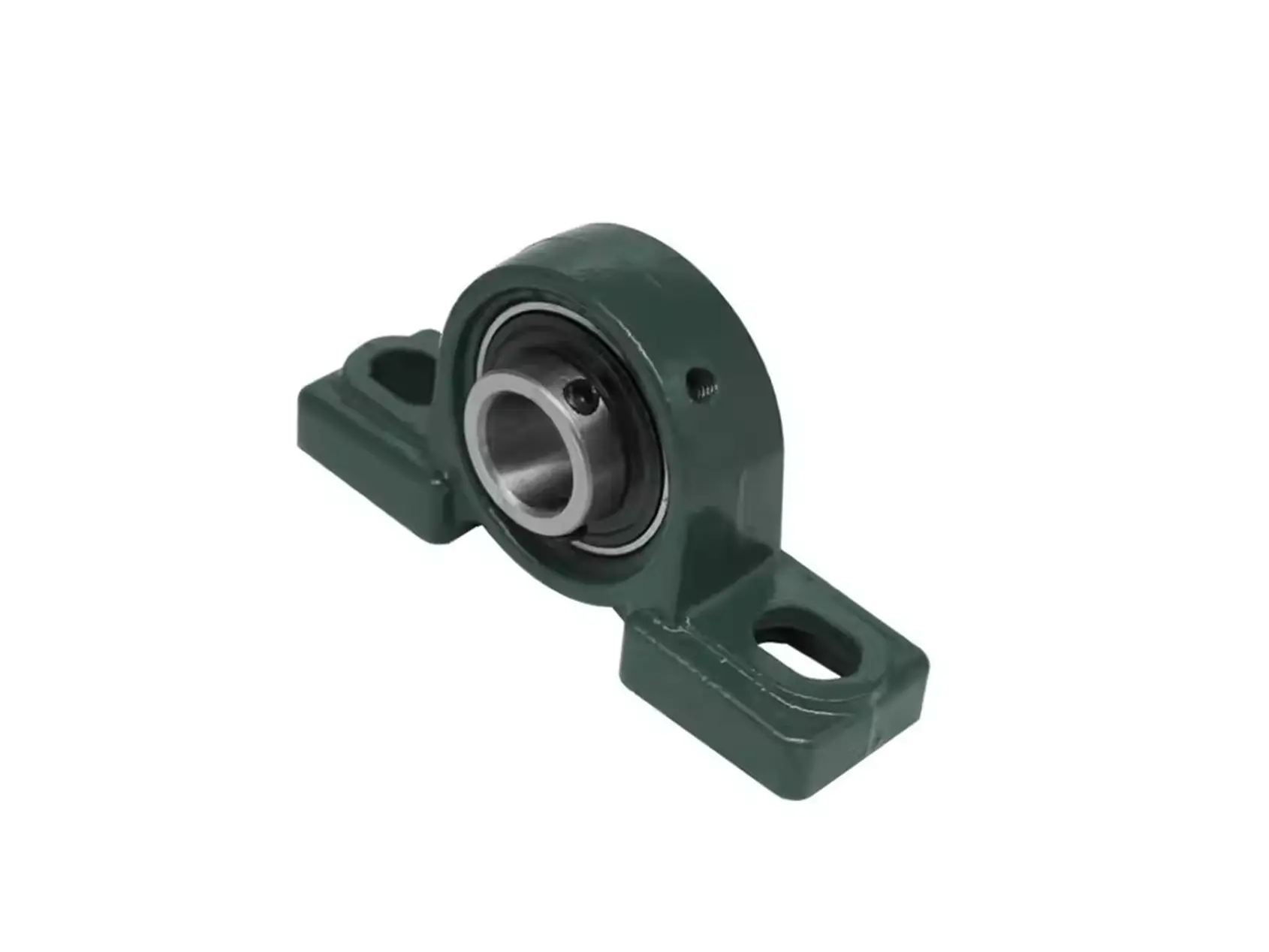

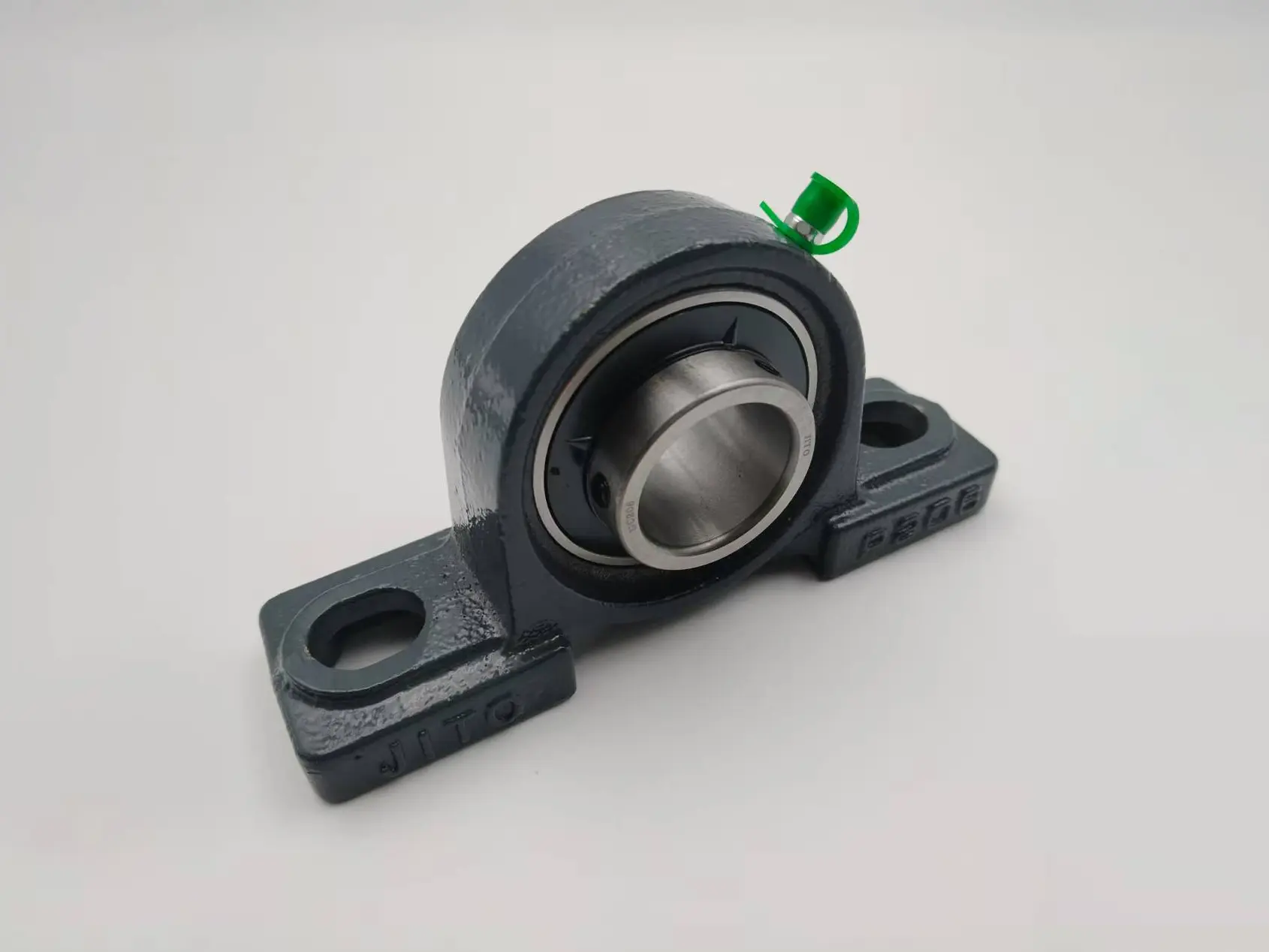

Composition: It consists of an outer spherical ball bearing with seals on both sides and a cast bearing seat. The inner ring of the outer spherical ball bearing is wider than the outer ring. The outer ring has a truncated spherical outer surface, which can automatically align with the concave spherical surface of the bearing seat.

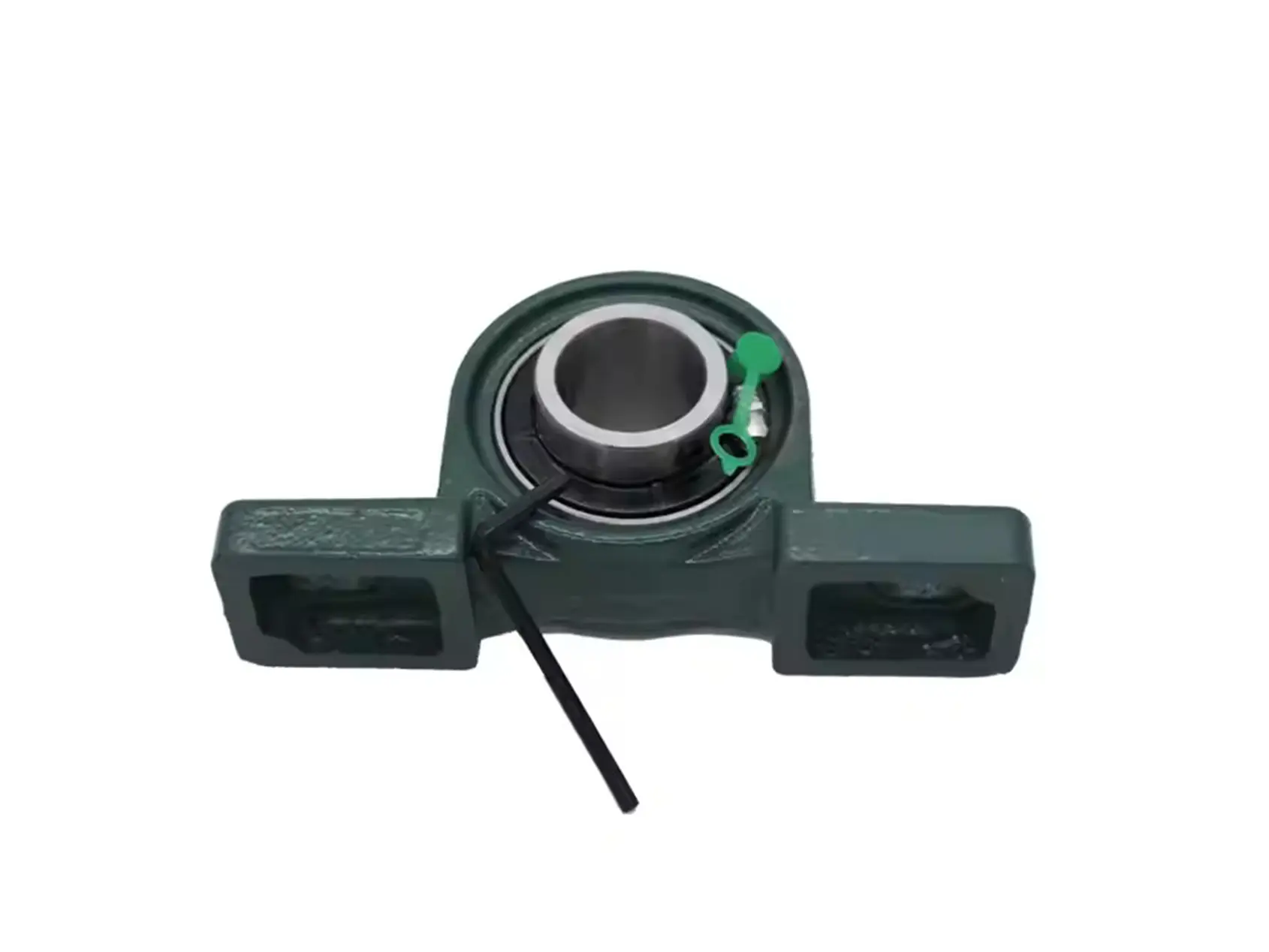

Locking method: There is a gap between the inner hole and the shaft. The inner ring of the bearing is fixed to the shaft by a top screw, an eccentric sleeve or a tightening sleeve. UCP 206 usually uses two set screws on the extended inner ring to achieve locking with the shaft.
Easy to install: The integral bearing seat and bearing combination can be directly installed on the main body of the mechanical device through a few bolts, reducing installation time and workload.
Automatic self-aligning: It can adapt to a certain degree of inclination and deviation of the shaft, compensate for installation errors and deformation during equipment operation, and ensure the normal operation of the bearing.
Good sealing: It usually comes with a sealing device, such as a sealing ring or a dust cover, which can effectively prevent dust, impurities, etc. from entering the bearing and extend the service life of the bearing.
Industrial machinery: It is widely used in various industrial production equipment, such as conveyors, mixers, fans, pumps, etc., to support the rotating shaft and ensure the normal operation of the equipment.
Agricultural machinery: Such as harvesters, seeders, tractors and other agricultural equipment, it can withstand the complex loads and vibrations in agricultural operations.
Construction machinery: For example, cranes, concrete mixers, excavators, etc., provide reliable support and rotation functions for equipment in harsh working environments.
We provide communication on demand and our engineers work out optimum solutions based on your specific conditions.
In accordance with ISO standards, we have professional Q/C staff to ensure quality from material receiving to packaging.
Standardized export packing is used. Custom boxes, labels, and barcodes can be provided upon request.
Ocean transportation is standard due to weight, but airfreight and express options are available.
We provide a 12-month warranty against defects in material and workmanship from the shipping date.
