Jito Bearing
1 / 1
| Item No. | UCT 210 |
| Bearing Type | Pillow block bearing |
| Material | Chrome steel GCr15 |
| Precision | P0, P2, P5, P6, P4 |
| Clearance | C0, C2, C3, C4, C5 |
| Brand | OEM |
| Shaft diameter | 50mm |
| Weight | 2.41 kg |
| Sealing type | Contact seal and flinger on both side |
| Housing material | Cast iron |
| Basic Dynamic load | 35.1kN |
| Basic Static load | 23.2kN |
| Limit speed | 3,300 r/min |
| Application | Industrial field, Agricultural machinery |

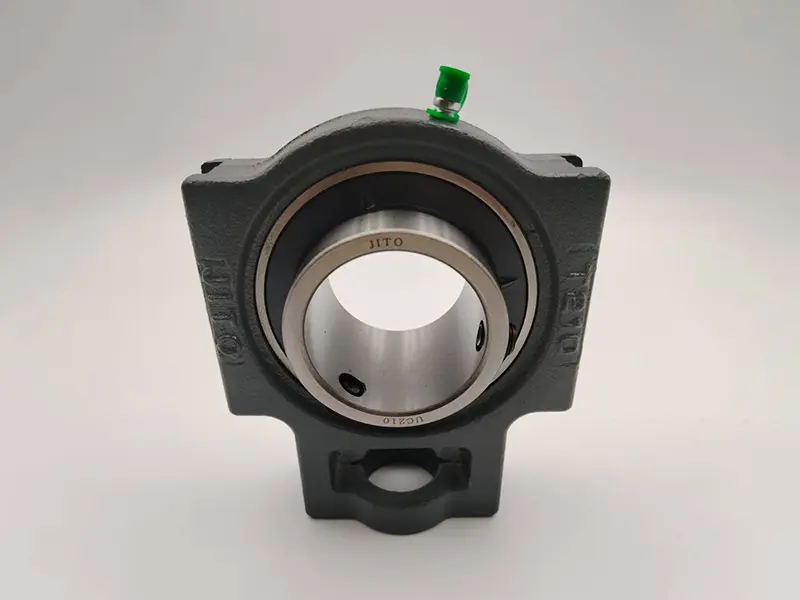

Bearing unit: It is composed of UC210 outer spherical ball bearing and T210 bearing seat, and it is made of chrome steel with good wear resistance and strength.
Bearing seat: T210 bearing seat is generally made of cast iron, with good rigidity and shock absorption, and can provide stable support for the bearing.
Easy to install: It is equipped with two special set screws, located in the inner ring of the ball bearing, locked with the shaft, simple to install, and suitable for forward and reverse applications.
Good sealing: It adopts positive contact, three-piece, fiber-embedded R-type seal to prevent contaminants from intrusion, retain grease, and extend the service life of the bearing.
High stability: The full-width inner ring design provides additional stability, and the set screws are placed at a 90-degree angle to optimize the balance between support force and inner ring deformation.
Industrial field: Commonly used in construction equipment, conveyors, food and beverage processing equipment, packaging machinery, etc., and can withstand normal loads.
Agricultural field: Suitable for transmission parts of agricultural machinery, such as harvesters, tractors and other equipment, to meet the complex working conditions in agricultural production.
Other fields: Also used in some small machinery and equipment, such as woodworking machinery, fitness equipment, etc.
We provide consultation and work out an optimum solution based on customer demand.
Professional Q/C staff and precision testing ensure high quality in every process.
Standardized export packing is used, with custom options for labels and barcodes.
