Jito Bearing
1 / 1

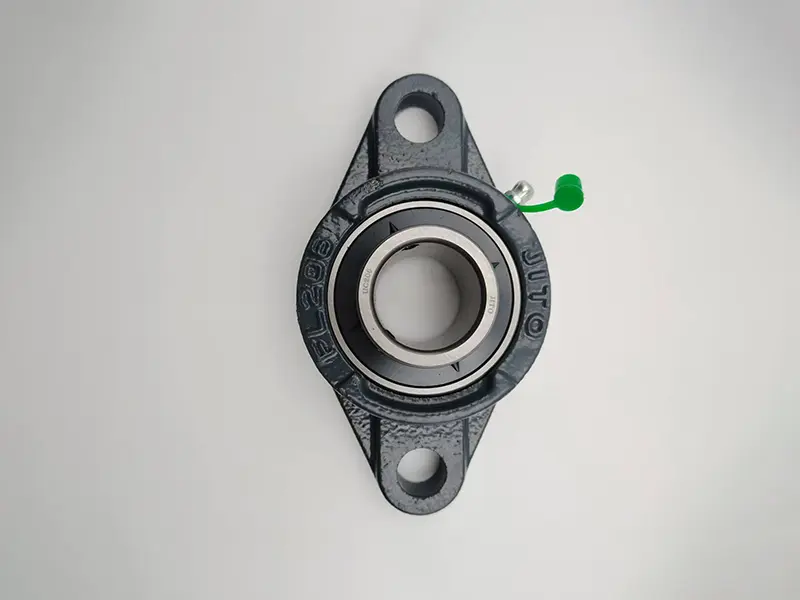

| Item No. | FL206 |
| Bearing Type | Pillow block bearing |
| Material | Chrome steel GCr15 |
| Precision | P0,P2,P5,P6,P4 |
| Clearance | C0,C2,C3,C4,C5 |
| Brand | JITO or OEM |
| Inner diameter | 30 mm |
| Outer diameter | 62 mm |
| Bearing seat dimension | Overall length 148mm, width 80mm, height 40.2mm, center distance between two bolt holes 117mm |
| Weight | 0.61kg |
| Dynamic load rating | 14.97 kN |
| Static load rating | 11.31 kN |
| Fatigue load | 0.48kN |
| Limit speed | 5300 r/min |
| Application | Automotive industry, Agricultural machinery, Industrial machinery |
| Bearing Package | Pallet, wooden case, commercial packaging or as customers' requirement |
External spherical surface design: The outer diameter surface of the outer ring of the bearing is a spherical surface, which can fit with the corresponding concave spherical surface of the bearing seat to play a self-aligning role and automatically compensate for the axis centerline deviation.
With seat structure: The rolling bearing and the bearing seat are combined to form a complete bearing unit, which is easy to install and position.
Good self-aligning performance: It can adapt to a certain degree of deflection and swing of the shaft during operation, ensuring normal operation and reducing additional stress.
Good sealing performance: Double-structure sealing effectively prevents dust and moisture, extending the service life of the bearing.
We provide optimum solutions based on the customer's specific demand and working conditions.
In accordance with ISO standards, we implement strict quality control from material receiving to packaging.
Standardized, environment-protected export packing is used, with custom options available upon request.
We primarily use ocean transportation for heavy loads, with airfreight and express options available.
We provide a 12-month warranty from the shipping date against defects in material and workmanship.
