Jito Bearing
1 / 1

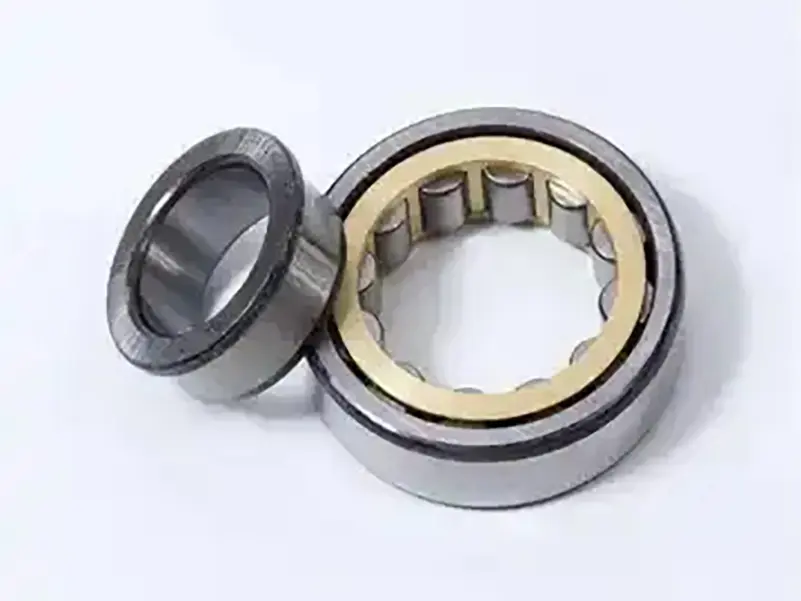

| Item No. | NU2308 |
| Bearing Type | Cylindrical roller bearing |
| Material | Chrome steel GCr15 |
| Precision | P0,P2,P5,P6,P4 |
| Clearance | C0,C2,C3,C4,C5 |
| Brand | OEM |
| Specification | 40*90*33 mm |
| Weight | 0.951kg |
| Dynamic load rating | 82.5 kN |
| Static load rating | 88 kN |
| Application | Automotive industry, Agricultural machinery, Industrial machinery |
Large load capacity: The roller and the raceway are in line contact or repair line contact, with large radial load capacity, can withstand heavy loads and impact loads.
Suitable for high-speed rotation: Small friction coefficient, the limit speed is close to that of deep groove ball bearings, suitable for high-speed operation.
Strong adaptability to axial displacement: N type and NU type can move axially, useful as free end supports for shafts with thermal expansion.
Easy installation and disassembly: Separable inner or outer rings make maintenance convenient and time-saving.
NU2308 bearings are widely used in mining, metallurgy, construction, machinery, and chemical industry equipment, such as tunneling machines, forklifts, vibrating screens, and printing machinery.
| Model | d (mm) | D (mm) | B (mm) | Weight (kg) |
|---|---|---|---|---|
| NU204 | 20 | 47 | 14 | 0.111 |
| NU304 | 20 | 52 | 15 | 0.153 |
| NU205 | 25 | 52 | 15 | 0.137 |
| NU305 | 25 | 62 | 17 | 0.241 |
| NU206 | 30 | 62 | 16 | 0.207 |
| NU306 | 30 | 72 | 19 | 0.358 |
We provide professional consultations to design the optimum bearing solution based on your specific requirements and operating conditions.
Strict quality control processes are implemented from raw material sourcing to final packaging, ensuring ISO standard compliance.
We offer standardized export packing to protect against moisture and impact. Custom labeling and barcode services are available.
